Description

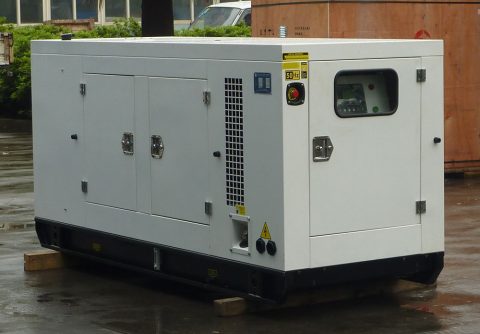

180kw 6 cylinders Perkins silent diesel generator overall specifications
| Model: | 180GF-P |
| Prime Power: | 180KW/225KVA |
| Standby Power: | 200KW/250KVA |
Diesel Engine Specifications
| Engine Model | 1306A-E87TAG4 |
| Engine Manufacturer | Perkins UK |
| Cylinder quantity | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 |
| Aspiration | Turbo charged |
| Bore x Stroke (mm x mm) | 116.6×135.9 |
| Displacement | 8.7 L |
| Compression Ratio | 16.9:1 |
| Prime power / Speed (KW/RPM) | 205kw/1500 |
| Standby power/ Speed (KW/RPM) | 224kw/1500 |
| Governor type | Electric |
| Piston Speed | 6.8 m/s |
| ElectropaK net engine power | 198kw |
| Total Lubrication System Capacity (L) | 28.3 |
| Total Coolant Capacity (L) | 37.2 |
| Fuel Consumption at 100% load (L/hour) | 53 at rated speed |
| Starter motor | 12/24V options |
| Alternator | 12/24V options |
| Minimum cranking speed | 130 rpm |
Alternator Specifications
| Alternator model | UCI274J |
| Alternator manufacturer | STAMFORD |
| Exciter type | Single bearing, Brushless, Self-excited |
| Rated output prime power | 230KVA |
| Rated speed | 1500 rpm |
| Rated frequency | 50Hz |
| Number of phase | 3 |
| Rated voltage | 400V (Available with custom requirements) |
| Power factor | 0.8 |
| Voltage regulation NL-FL | ≤±1% |
| Insulation grade | H |
| Protection grade | IP23 |
Dimension & Weight
| Open Type Overall Size:L×W×H (mm) | 2800×1200×1800 | Soundproof Type Overall Size:L×W×H (mm) | 3650×1500×2500 |
| Open Type Weight (kg) | 1700 | Soundproof Type Weight (kg) | 3200 |
