Description

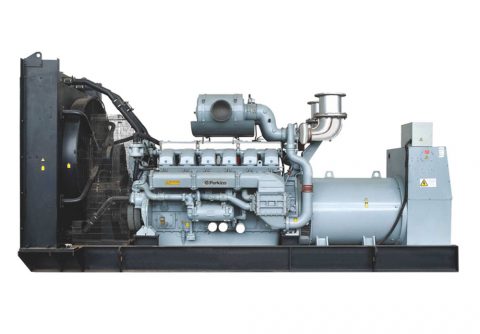

Standby 900kw Perkins diesel electricity generator overall specifications
| Model: | 818GF-P |
| Prime Power: | 818KW/1022KVA |
| Standby Power: | 900KW/1125KVA |
Diesel Engine Specifications
| Engine Model | 4008-TAG2A |
| Engine Manufacturer | Perkins UK |
| Cylinder quantity | 8 |
| Cylinder Arrangement | In-line |
| Cycle | 4 |
| Aspiration | Turbo charged |
| Bore x Stroke (mm x mm) | 160×190 |
| Displacement | 30.56L |
| Compression Ratio | 13.6:1 |
| Prime power / Speed (KW/RPM) | 899kw/1500 |
| Standby power/ Speed (KW/RPM) | 985kw/1500 |
| Governor type | Electronic |
| Piston Speed | 9.5 m/s |
| Typical genset electrical output | 1022 kw |
| Total Lubrication System Capacity (L) | 153 |
| Total Coolant Capacity (L) | 149 |
| Fuel Consumption at 100% load (L/hour) | 220L |
| Starter motor | 24V |
| Alternator | 24V |
| Minimum cranking speed | 120 rpm |
Alternator Specifications
| Alternator model | HCI634J |
| Alternator manufacturer | STAMFORD |
| Exciter type | Single bearing, Brushless, Self-excited |
| Rated output prime power | 1030KVA |
| Rated speed | 1500 rpm |
| Rated frequency | 50Hz |
| Number of phase | 3 |
| Rated voltage | 400V (Available with custom requirements) |
| Power factor | 0.8 |
| Voltage regulation NL-FL | ≤±1% |
| Insulation grade | H |
| Protection grade | IP23 |
Dimension & Weight
| Open Type Overall Size:L×W×H (mm) | 5600×2300×2800 | Silent Type Overall Size:L×W×H (mm) | 20FT Container |
| Open Type Weight (kg) | 6200 | Silent Type Weight (kg) | 9000 |
